10.4 12.1 15 Inch 1024x768 Embedded All i One PC IP65 Waterproof Frame 10 Points Industrial Touch Screen Panel PC For Win 10pro
Regular price
$2,163.99
SPECIFICATIONS
Brand Name: metawesome
Hard Drive Capacity: 120GB
Memory Capacity: 4GB
Model Number: All In One PC AIOCH
Port: VGA HDMI RJ45 COM
Weight: 8KG
Graphics Card Chipset: HD Graphics
Type: All-In-One
Memory Capacity: 4GB
Origin: Mainland China
HDD Rotation Speed: SSD
Mouse & Keyboard: No
Drive Type: No CD ROM
RAM Type: DDR3
Video Memory Type: With the main memory
Bundle: Bundle 1
Dispaly Ratio: 4:3
Graphics Card Type: Integrated Card
Display Type: TOUCH SCREEN
Certification: CE
Certification: RoHS
Operating System: Windows 10
Processor Core: Dual Core
Product name: All In One PC
Material: IP65 Aluminum alloy frame
Touch type: Capacitive touch (10 points touch)
Operating System: Win7//10 pro/11
Installation method: Wall mount, embedded (Default), desktop.
Feature: IP65 waterproof flat frame, dustproof,10 points touch screen
Warranty: 1 Year
OEM/ODM: Supported
HMI all in one pc, panel pc, industrial touch pc, industrial computer, HMI computer, lcd monitor
Customers from European should provide your VAT Numbers for custom clearance, also custom fees should be paid by Buyers. Pls kindly confirm that.
panel computer, tablet pc, mini pc, all in one pc, industrial touch pc
Embedded touch all in one pc of Parameter
Brand: Metawesome
Material: Aluminum alloy frame, iron metal back cover
Memory: RAM 4GB/8GB DDR3 System Memory
Storage: 64GB/128GB/256GB SDD
System: WIN7/8/10 pro
Graphic: Intel HD Graphics
Color: black (customizable color welcomed)
Weight: about 5-9Kgs
System Parameter:
Intel Celeron-J1800 (Dual cores, 1m high-speed L2 cache, 2.41 GHz-2.58 GHz, TDP power consumption:10w)
Intel Celeron-J1900 (Quad cores, 2m high-speed L2 cache, 2.00 GHz-2.41 GHz, TDP power consumption:10w)
Intel Core i3-3217U (Daul cores, 3m high-speed cache, 1.80 GHz, TDP power consumption:17w)
Intel Core i5-3317U (Daul cores, 3m high-speed cache, 1.70 GHz-2.60 GHz, TDP power consumption:17w)
Intel Core i5-3210M (Daul cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:18w)
Intel Core i3-4120U (Dual cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:15w)
Intel Core i5-4300U (Dual cores, 3m high-speed cache, 1.900GHz, TDP power consumption:15w)
Intel Core i7-4600U (Dual cores, 4m high-speed L2 cache, 2.10 GHz, up to 3.30GHz, TDP power consumption:15w)
Intel Core i5-6200U (Dual cores, 4m high-speed cache, 2.30 GHz, TDP power consumption:15w)
Intel Core i5-6360U (Dual cores, 4m high-speed cache, 2.00 GHz-3.10 GHz, TDP power consumption:15w)
Intel Core i5-8265U (Quad cores, 6m high-speed L2 cache, 1.60 GHz-3.90GHz, TDP power consumption:15w)
Intel Core i7-8565U (Quad cores, 8m high-speed L2 cache, main frequency 1.80 GHz-4.60GHz, TDP power consumption:15w)
Intel Core i5-10210U (Quad cores, 8m high-speed cache, 1.60 GHz-4.20 GHz, TDP power consumption:15w)
Intel Core i5-1135G7 (Quad cores, 8m high-speed L8 cache, 2.40 GHz-4.20GHz, TDP power consumption:28w)
Parameters of LCD Touch screen：
Touch screen type: Capacitive touch screen (10-points)
Touch screen interface: usb
Light transmittance: 80%
Life expectancy: 35 million times (theoretical value)
Brightness: 300cd/m2
Contrast ratio 500:1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 12V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance：75*75mm
Dimension:
Aluminum alloy die casting die-new upgrade design
The industrial computer is with High-quality pure aluminum.
3mm bezel Aluminum alloy frame and Iron Frame back cover.
Pure flat new design capacitive touch panel pc computer
Standard 10-points touch with 5ms reponse time, sensitive touch and no any blind spot.
Super strong current sensing provide with more stable and operation.

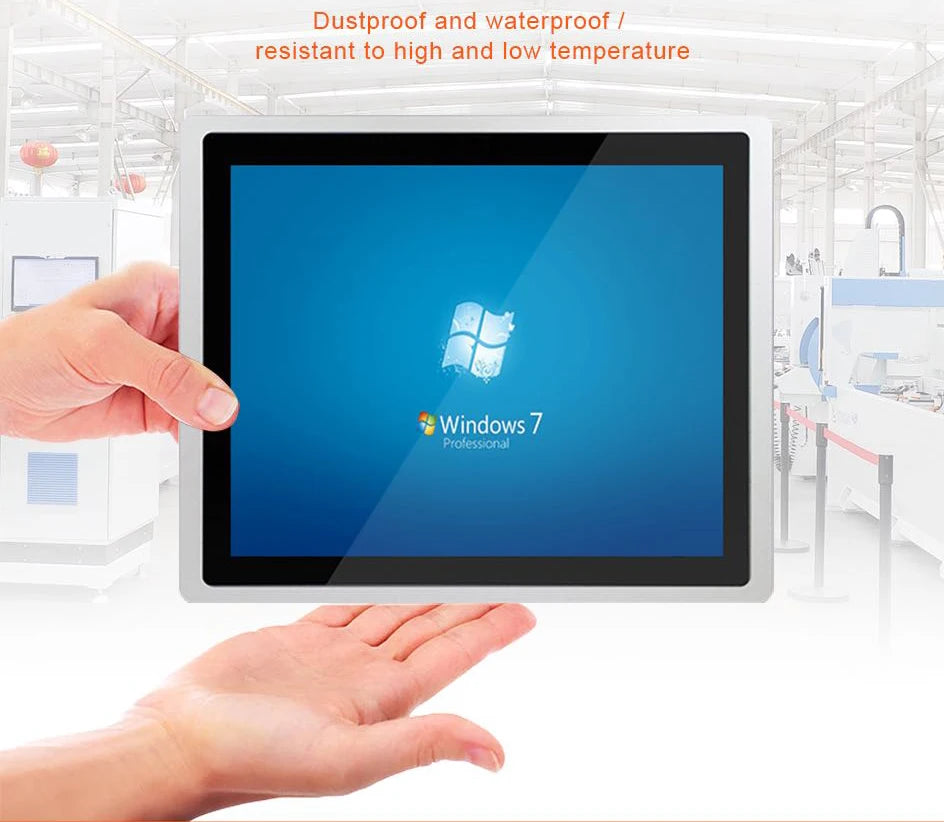

IP65 dustproof, oilproof and waterproof pure flat embedded touch panel pc
The pure flat panel IP65 protection grade design no crack.
Ture flat design effectively dustproof, waterproof and oilproof splashed into the machine.
24H Temp Humidity Test
All new product will be strictly tested 48H before shippment, to make sure our clients can receive high quality goods.
Shipping methods
1) We can't control the delivery time because it's handled by a third-party service. If the package fails to arrive
within the expected time, please contact us, we will extend the delivery date before there is a dispute and will
try our best to help you hurry up.
2) Usually, we deliver goods free of charge through faster express delivery, such as DHL, UPS, EMS, FedEx,
TNT, or our express line and soon. Finally, no matter which shipping method you choose when ordering, we will
choose the most appropriate shipping method according to different countries and conditions. of course, we will
choose the shipping method that is easier to
clear customs, please pay attention.
3) But for those remote areas, we will inform the buyer and charge extra cost for buyer, otherwise we have to ship
for free by registered postal mail, it will be slower than EMS, DHL, FedEx, TNT, etc. thanks for kindly understanding.
About warranty:
All products from our company will be tested 24H before shipment, we provide 1 years warranty, within l year warranty period, if any problems, please provide us with a video proof at first time, and contact our customer service, they will forward the video to our engineers, and help you solve the problem. If still can't work, we will send the parts to replace for free.
